Description
| Specification | Value |
|---|---|
| Application | Desktop |
| Brand | Shunmaii |
| Form Factor | Micro-ATX (17 x 21 cm) |
| Chipset | Intel H310 / H310 Express |
| Chipset Manufacturer | Intel |
| Socket Type | LGA 1151 |
| CPU Support | Intel 8th / 9th Gen (Pentium supported) |
| Memory Support | DDR4 2133/2400/2666 MHz |
| Max RAM Capacity | 32GB |
| Memory Channels | Dual Channel |
| Graphics | Integrated Graphics Processor |
| Audio | Realtek ALC662, 6-Channel |
| LAN | Realtek 100M/1000M (Gigabit LAN) |

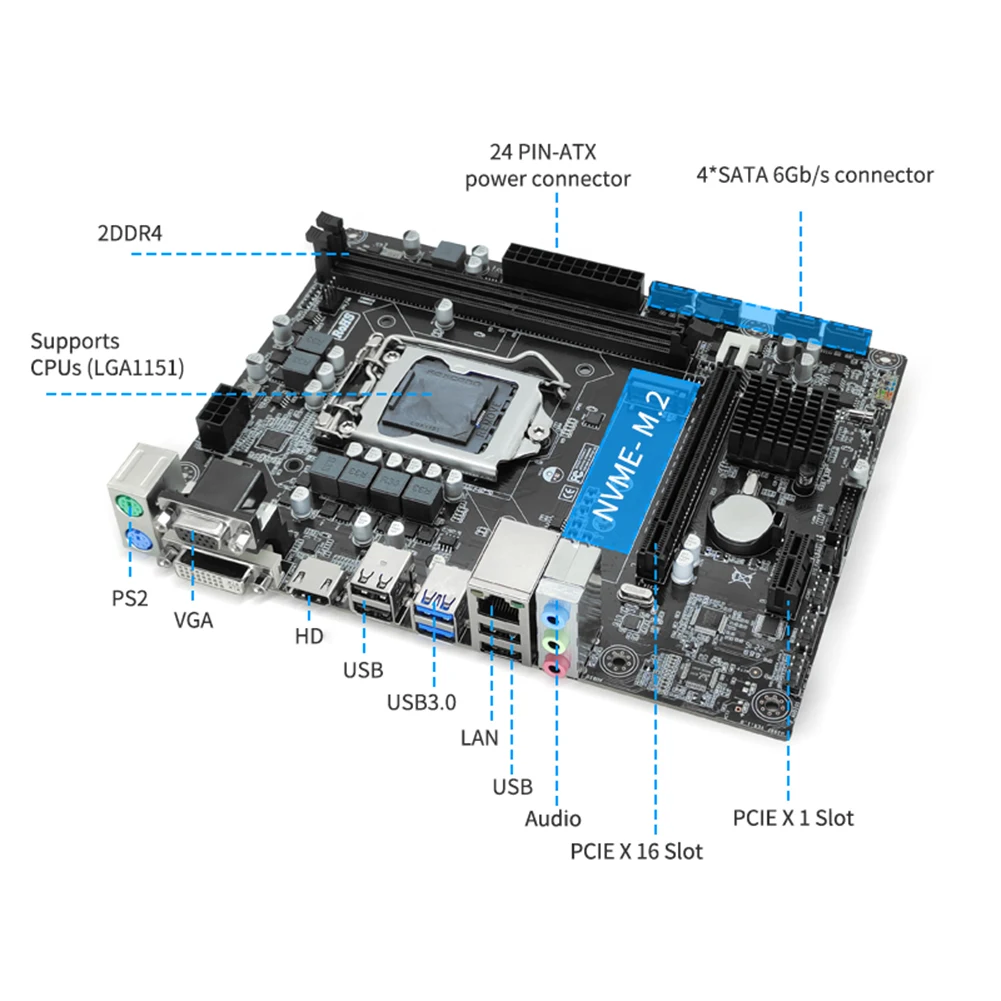

| Storage Interfaces | 1 x NVMe M.2, 4 x SATA 6Gb/s |
| PCI-E Standards | PCI-E 4.0 |
| Expansion Slots | 2 x PCI |
| Back I/O Ports | COM, USB 3.0, RJ45 |
| Power Connector | Standard ATX |
| Package | Yes |
| RAID Support | No |
| Usage Scenario | Household, Office, Everyday Computing |
The H310 LGA 1151 Micro-ATX motherboard is designed for users who need a stable, versatile platform for everyday computing, office work, and home use. Built on the Intel H310 Express chipset, it supports 8th and 9th Gen Intel processors, including Pentium series, ensuring smooth and reliable performance across a wide range of applications.
With support for dual-channel DDR4 memory up to 32GB at speeds of 2133/2400/2666 MHz, this board offers efficient multitasking and faster system response. It also includes an NVMe M.2 slot for high-speed SSDs, as well as four SATA 6Gb/s connectors for traditional storage drives, giving you flexibility in building a responsive and spacious system.
The integrated Realtek ALC662 6-channel audio codec delivers clear, rich sound, while the Realtek Gigabit LAN controller provides stable and fast network connectivity. Expansion is supported with PCI-E 4.0 slots, making it a great foundation for both current and future components.

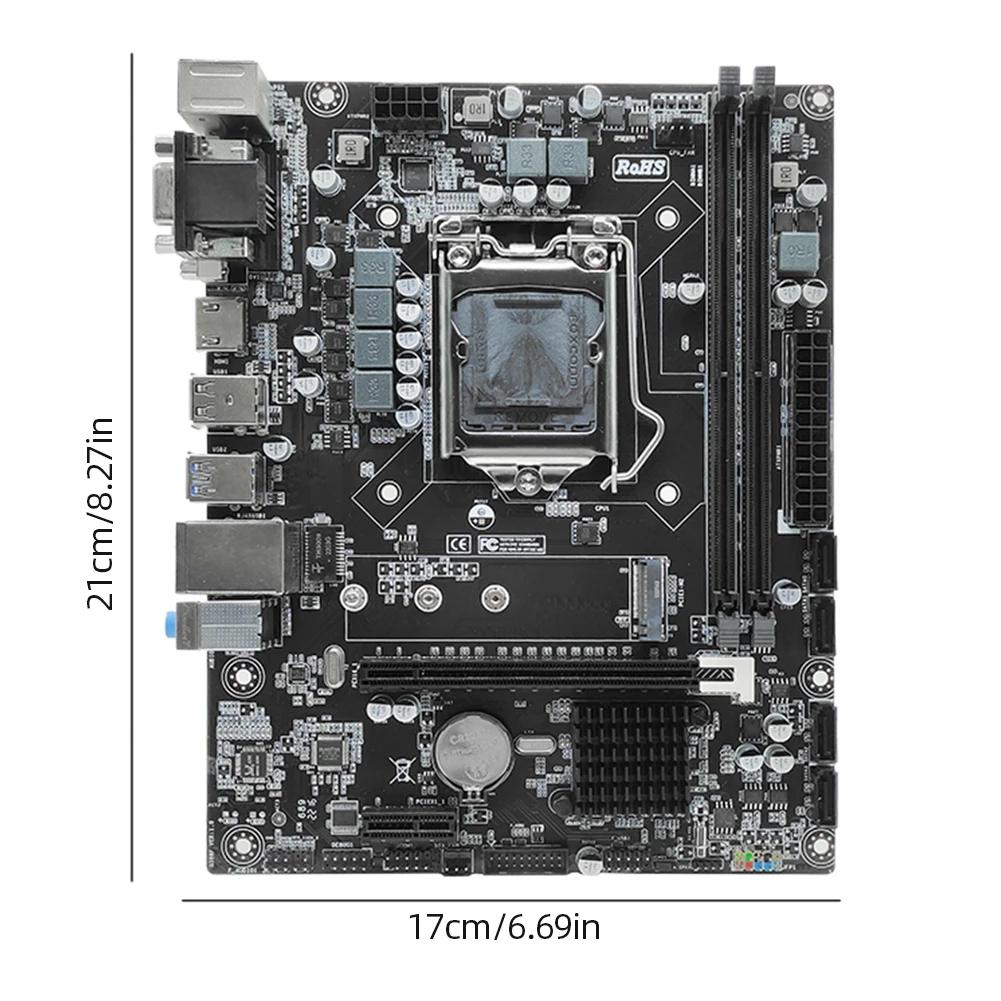

Compact in size at 17 x 21 cm, this Micro-ATX board fits easily into smaller cases while offering essential connectivity, including USB 3.0 and COM ports. For anyone looking for a dependable, cost-effective motherboard, the H310 LGA 1151 is a smart choice.
