Description

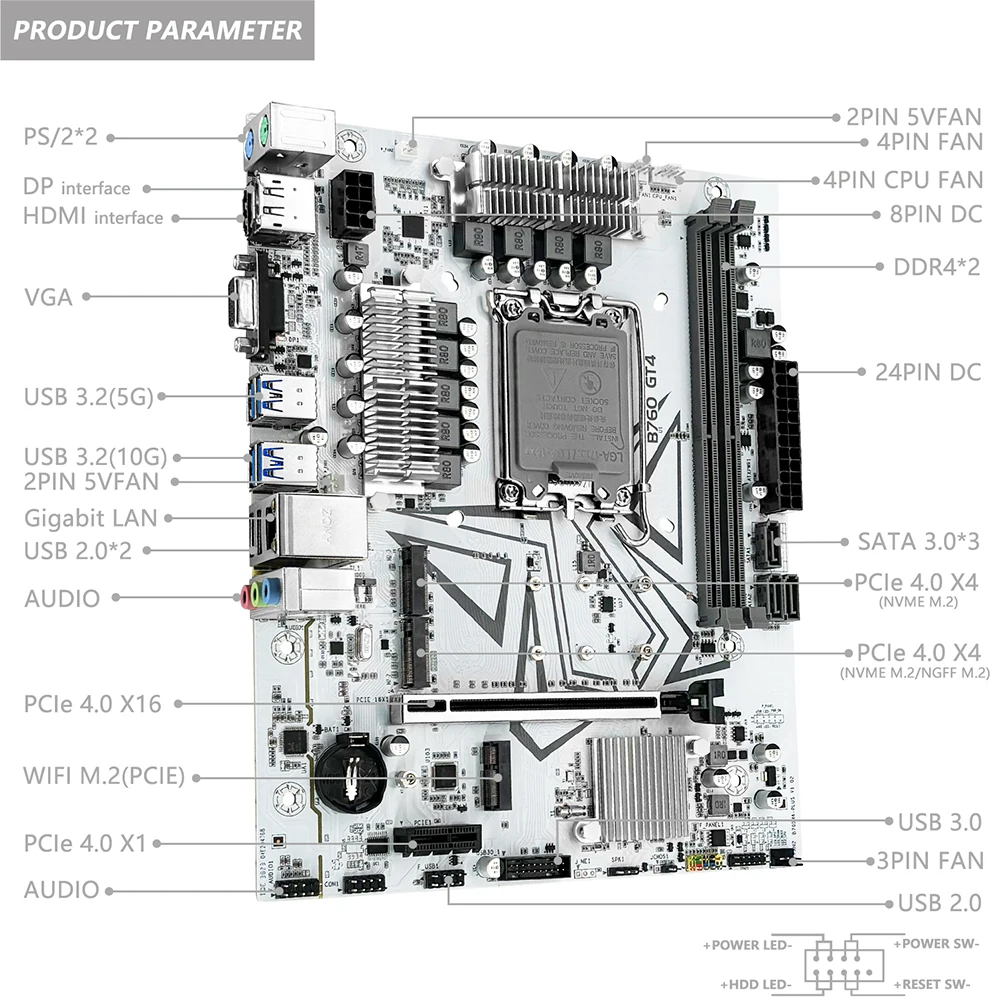

| Specification | Value |
|---|---|
| Application | Desktop |
| Brand | MACHINIST |
| Chipset | Intel B760 |
| Chipset Manufacturer | Intel |
| Socket Type | LGA 1700 |
| Processor Compatibility | Intel Core i3/i5/i7/i9 (12th/13th Gen) |
| Form Factor | Micro-ATX |
| Memory Type | DDR4 |
| Memory Channels | Dual Channel |
| Max RAM Capacity | 64GB |
| Number of Memory Slots | 2 |
| Storage Interfaces | 1 x M.2 (NVMe), SATA RAID 0 |
| Supports M.2 SSD | 2280 |
| PCIe Standards | PCI-E 4.0 |
| Expansion Slots | 1 x PCIe x16, 1 x PCIe x1 |
| Audio | 5.1 Channels |
| LAN | 1 x RJ45 |
| Back I/O Ports | 1 x RJ45, PS/2 Combo, USB 3.0 |
| Onboard Connectors & Headers | CPU Fan, AAFP Connector |
| Certification | CE, RoHS |
| Package | Yes |
| Usage Scenario | Gaming, Office, Household, Multimedia |

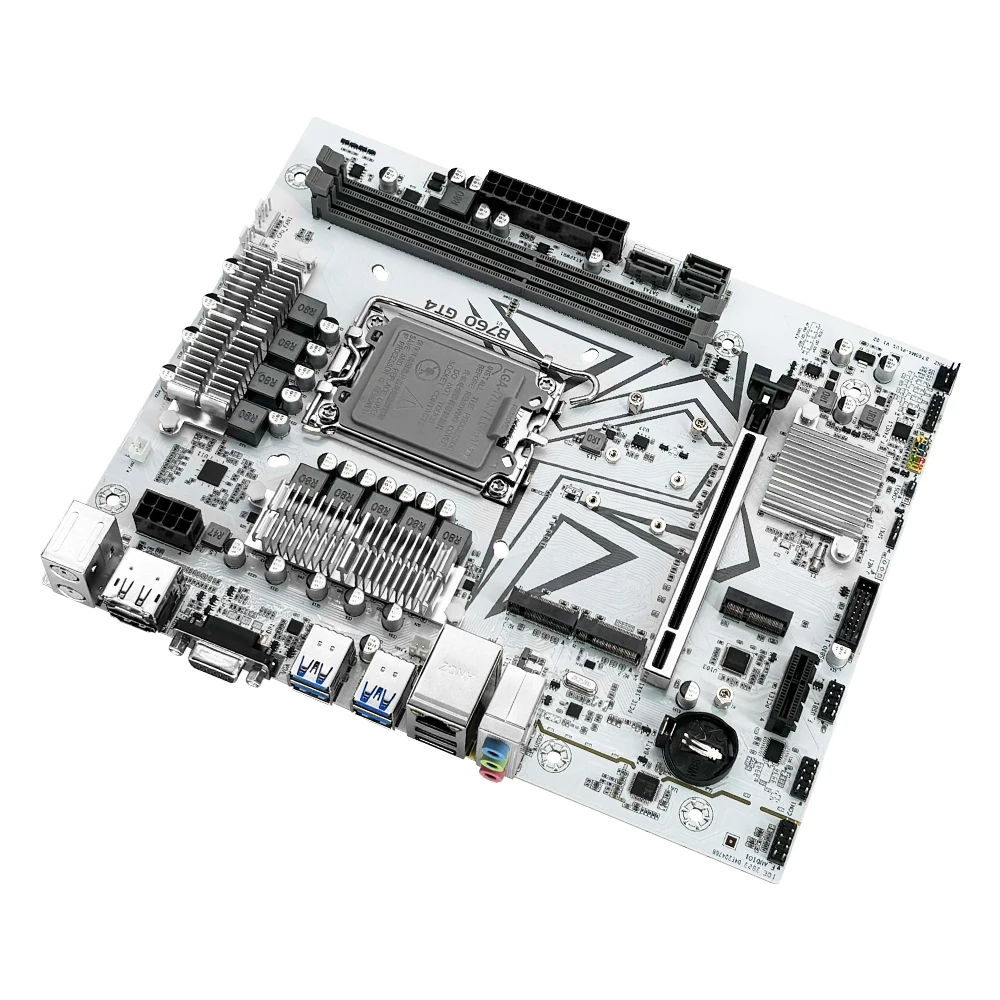

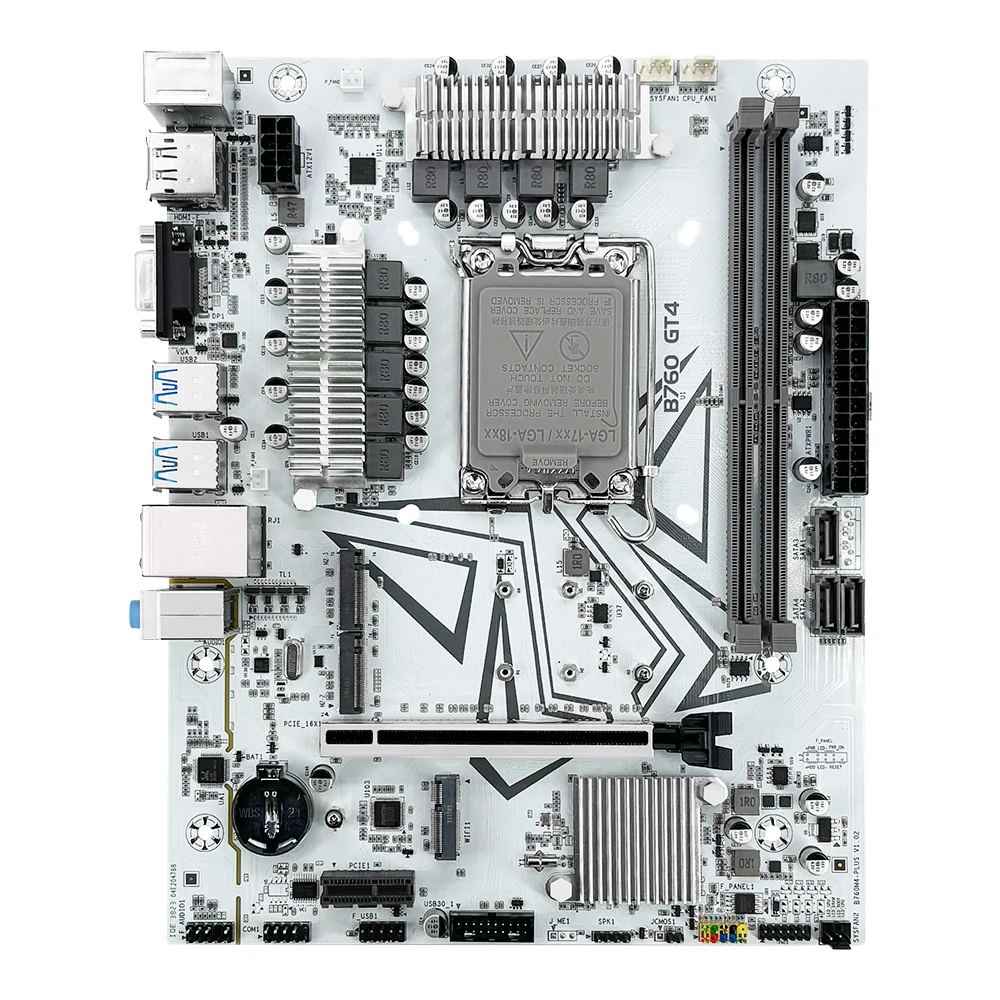

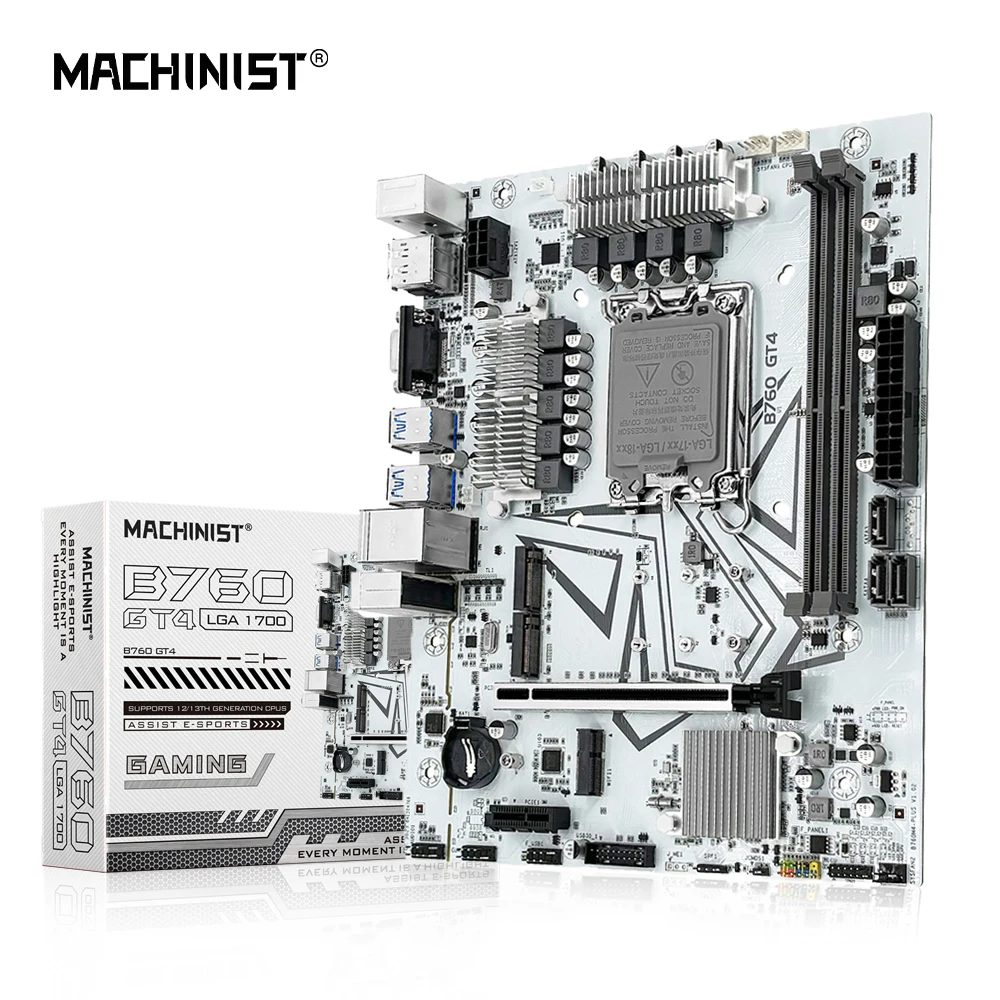

The MACHINIST B760 GT4 DDR4 Motherboard delivers a powerful, efficient, and versatile platform for both gaming and productivity. Designed with the Intel B760 chipset and LGA 1700 socket, it supports the latest 12th and 13th Gen Intel Core i3, i5, i7, and i9 processors, making it a reliable choice for modern PC builds.
With dual-channel DDR4 memory support up to 64GB, the board ensures smooth multitasking, faster system responsiveness, and stable performance. It comes equipped with one NVMe M.2 slot (2280) for ultra-fast SSD storage, alongside SATA RAID 0 support, giving you flexibility in managing speed and storage capacity.
Expansion options include a PCIe x16 slot and PCIe x1 slot, both running on PCIe 4.0 standards for high-bandwidth connectivity with the latest graphics cards and peripherals. Integrated 5.1-channel audio provides an immersive sound experience, while the Realtek RJ45 LAN ensures stable and fast network connections—ideal for online gaming, streaming, or office use.

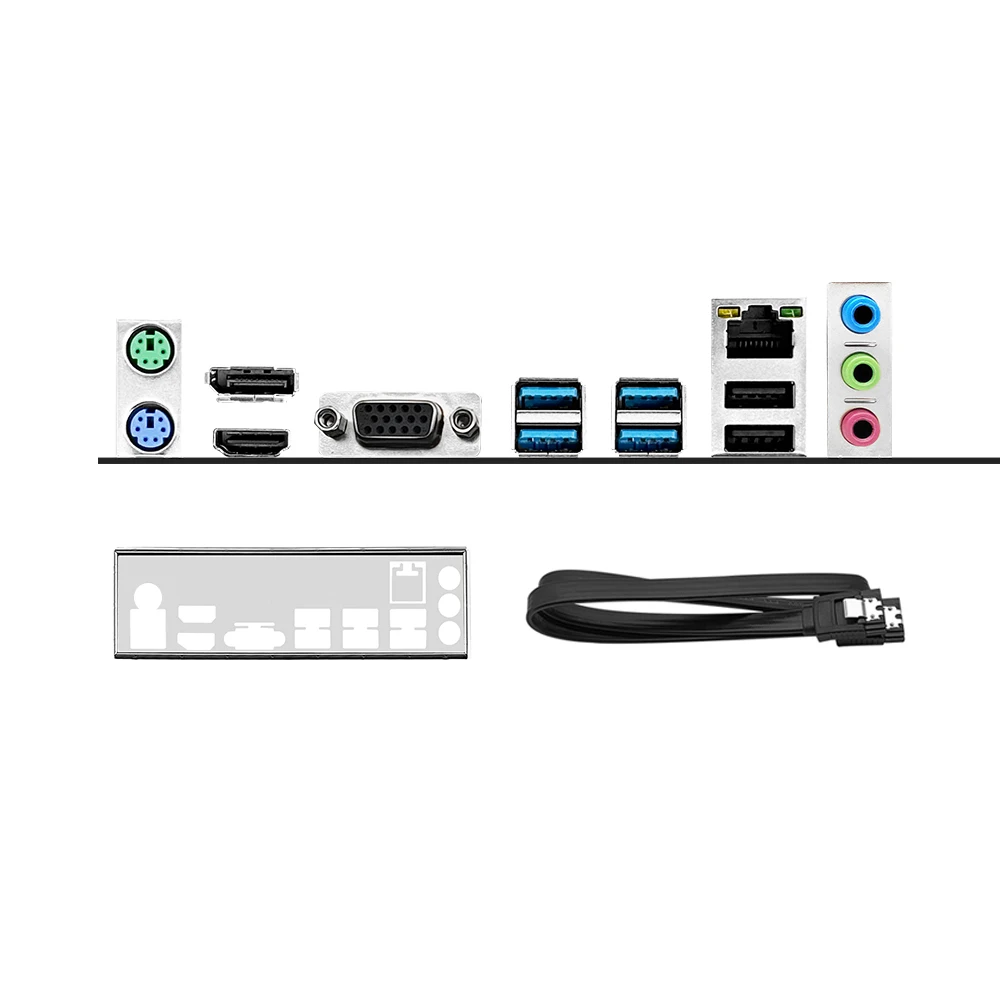

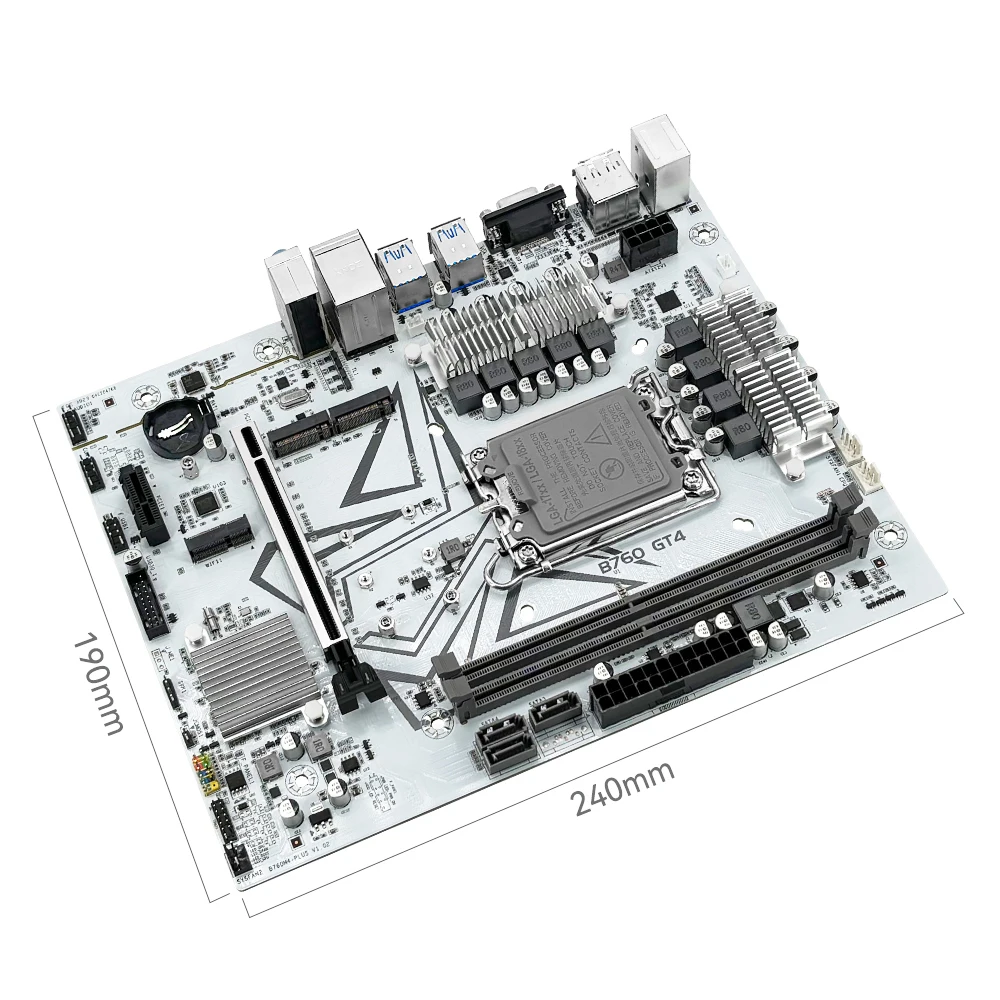

Its Micro-ATX form factor makes it compatible with a wide range of cases, offering excellent balance between size and expandability. Back I/O includes USB 3.0, PS/2 Combo, and RJ45 LAN for reliable connectivity. Certified with CE and RoHS, the MACHINIST B760 GT4 is built for quality and durability.
