Description
| Specification | Value |
|---|---|
| Brand | QIYIDA |
| Model | B450 Motherboard |
| Chipset | AMD B450 |
| Processor Support | AMD Ryzen 3000, 4000, 5000 Series |
| Socket Type | AM4 |
| Max Memory Capacity | 64GB DDR4 |
| Memory Slots | 2 (Dual Channel) |
| Storage Support | M.2 NVMe, M.2 SATA |
| Number of M.2 Slots | 1 |
| Expansion Slots | 1× PCIe x16, 1× PCIe x1, 2× PCI |
| PCI-E Standard | PCI-E 3.0 |
| Back I/O Ports | 1× RJ45, VGA (D-Sub), COM |
| Onboard Connectors | 24-pin Power, 4-pin +12V Power, CPU Fan, PWR_FAN |
| Onboard LAN | 1× RJ45 |
| USB Support | USB 2.0, USB 3.0 |
| RAID Support | No |
| Maximum LAN Speed | 1000Mbps (Gigabit LAN) |
| Audio Support | Integrated (details not specified) |
| Usage Scenarios | Gaming, Office, Video Production, Household, Audio & Video |
| Special Features | Compact, cost-effective AM4 platform |

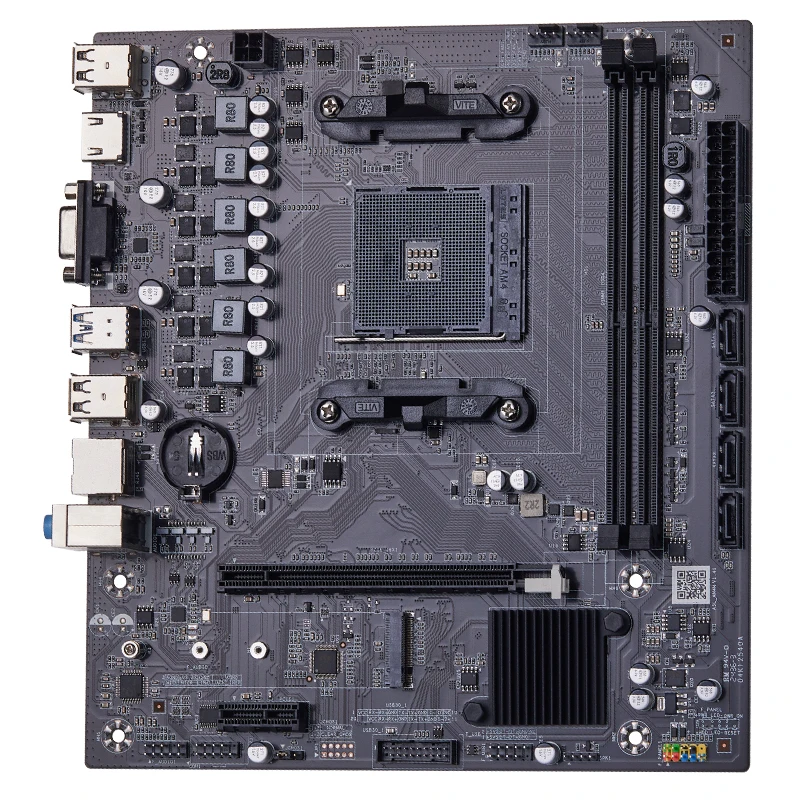

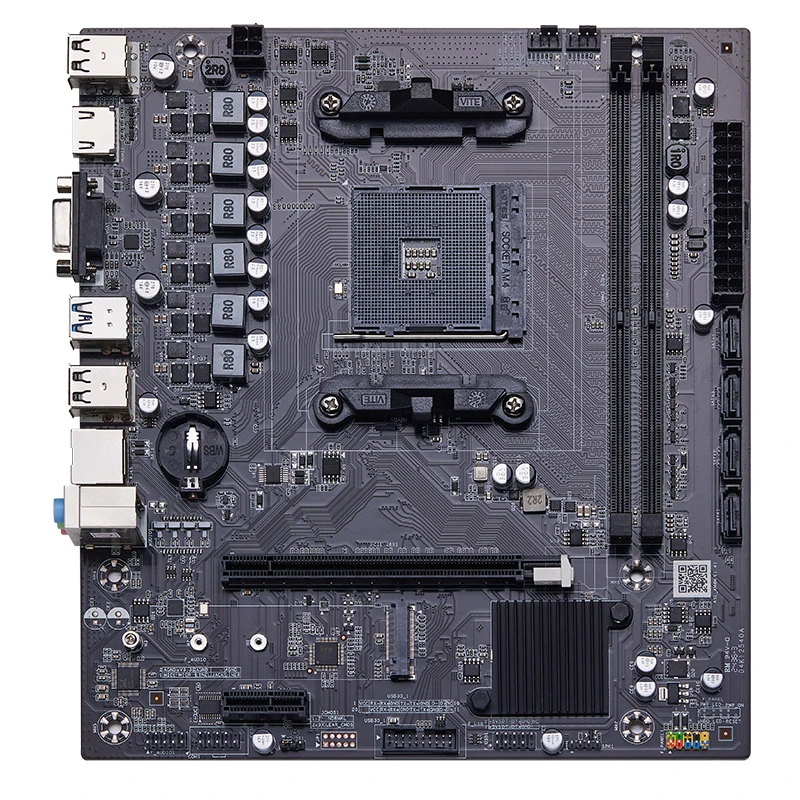

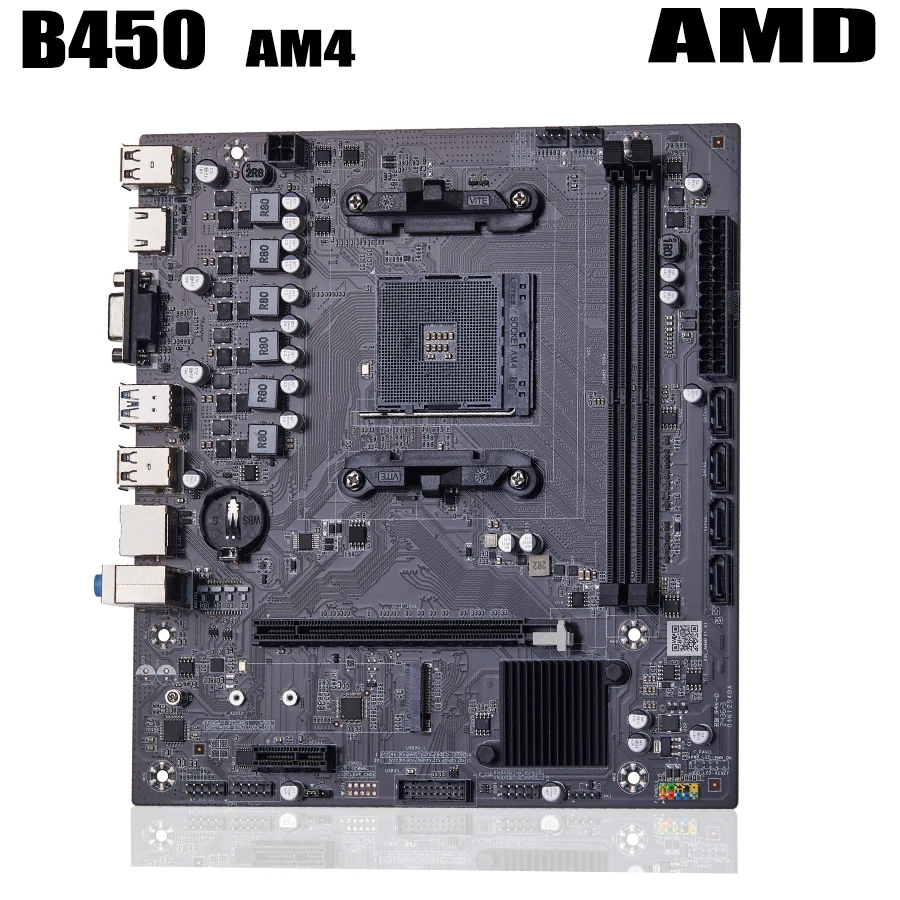

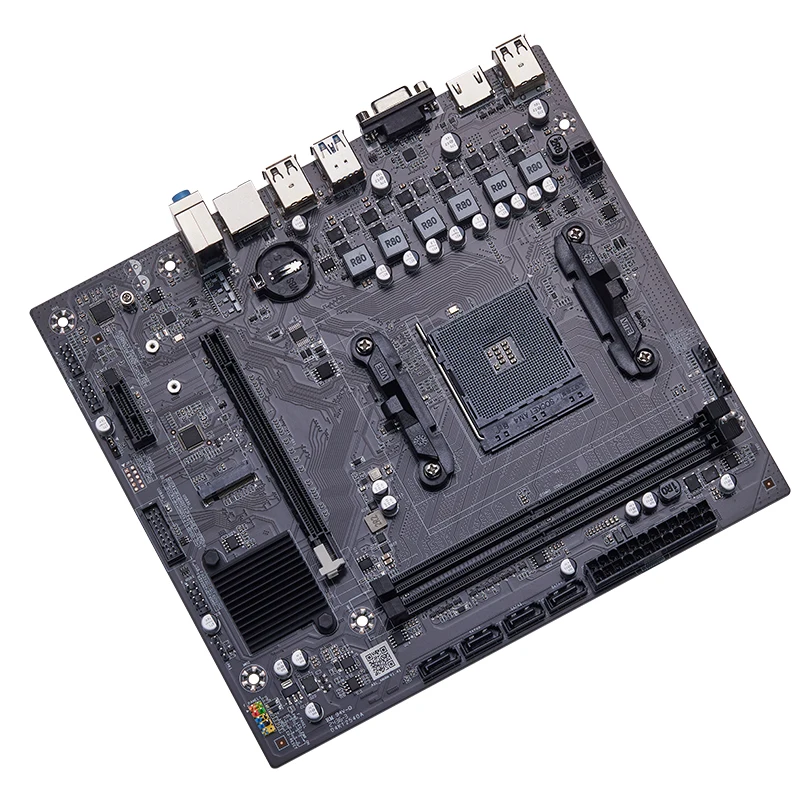

The QIYIDA B450 AM4 Motherboard is designed to deliver a balance of performance, stability, and efficiency for modern desktop builds. Powered by the reliable AMD B450 chipset, it supports AMD Ryzen 3000, 4000, and 5000 Series processors, making it an excellent choice for gamers, professionals, and everyday PC users.
With support for up to 64GB DDR4 memory across two slots in dual-channel configuration, this motherboard ensures smooth multitasking and faster data handling. For storage, it features both NVMe and SATA M.2 slots, allowing you to enjoy rapid load times, faster boot speeds, and efficient performance when paired with SSDs.

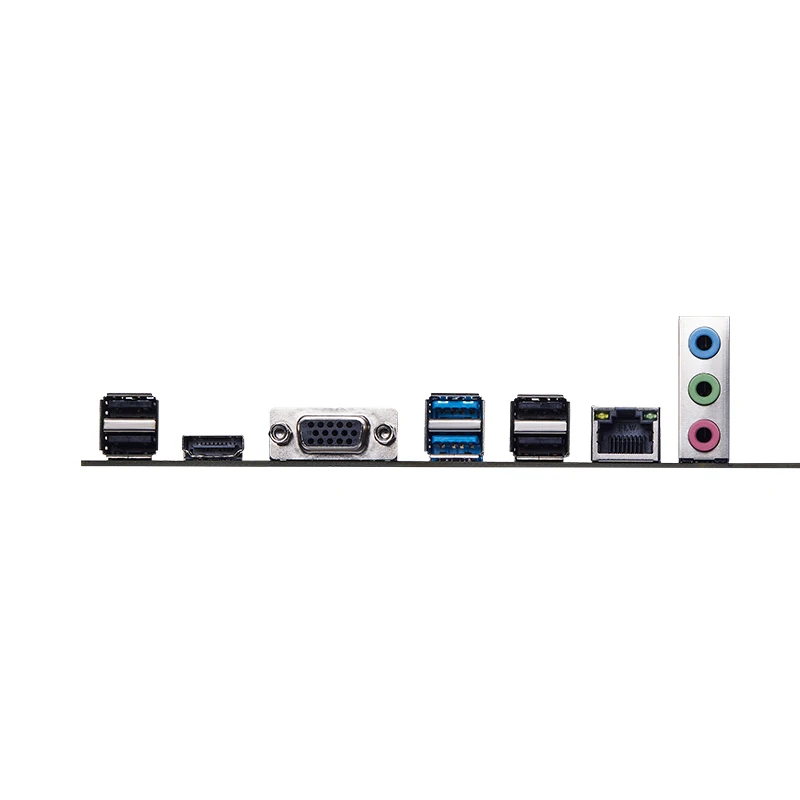

Connectivity is strong with USB 3.0 and USB 2.0 ports, providing high-speed data transfer and versatile device support. The board also comes with VGA output, COM port, and RJ45 LAN, ensuring compatibility with a wide range of applications—from gaming and entertainment to office and household use.

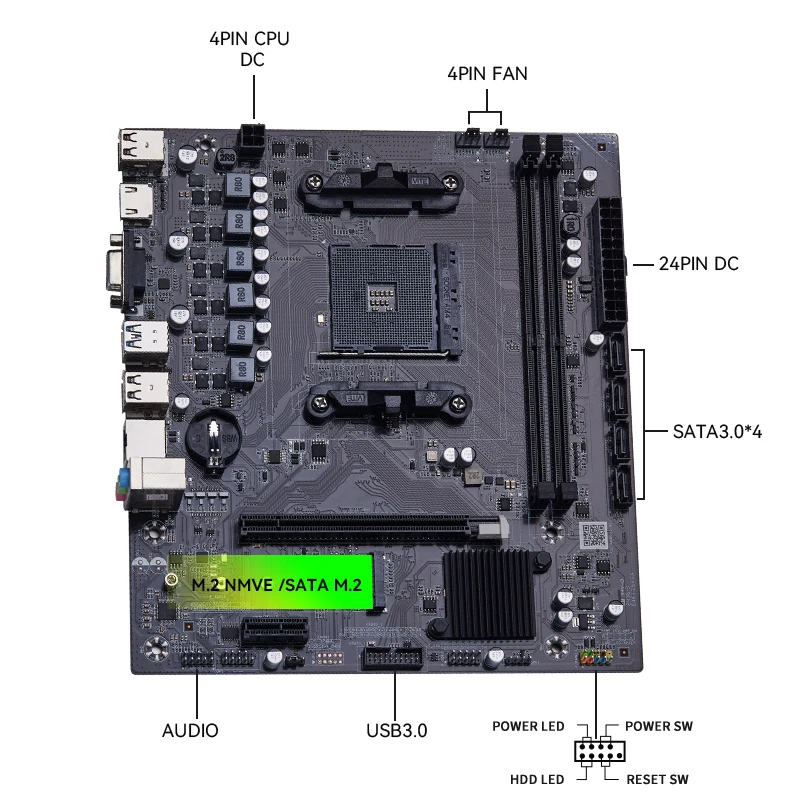

Equipped with a 24-pin power connector, CPU fan header, and PWR_FAN connector, the QIYIDA B450 delivers reliable power and cooling options for stable operation. Built to support PCI-E 3.0 expansion cards and GPUs, it’s a versatile platform for building a cost-effective and powerful desktop PC.
